Waiting on replacement parts can often cause costly downtime for municipal and industrial wastewater treatment plants. That’s why Aerator Solutions makes it quick and easy to order replacement parts to ensure your operations maintain efficiencies

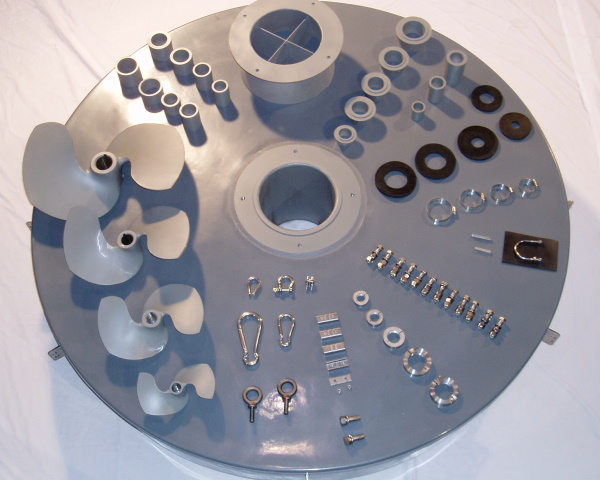

We offer replacement parts for complete EcoJet™ High-Speed Aerators and EcoJet™ High-Speed DDM Mixers and all previously manufactured aerators and mixers.

Parts are 100 percent interchangeable with the following systems:

  • Aqua-Jet® by Aqua-Aerobics
  • US Filter
  • Siemens
  • Welles Products/Peabody Welles
  • Evoqua
  • Aerators, Inc
  • Aqua-Lator®

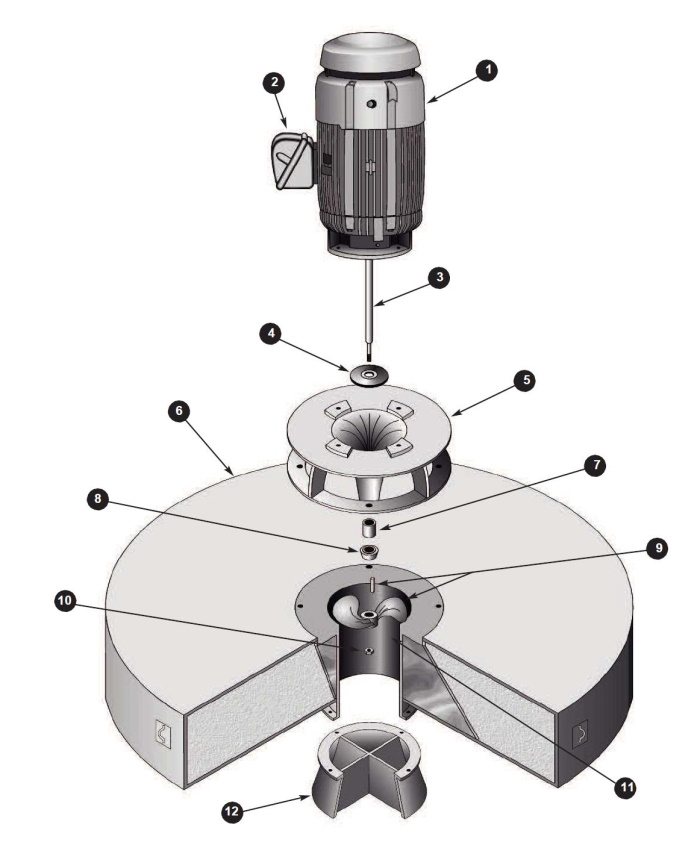

1. Motor:
  • Premium Efficient
  • Dynamically Balanced
  • Vibration Tested
  • Totally Enclosed, Fan Cooled
  • Heavy Gauge Cast Iron Fan Shield
  • Class F Insulation
  • Severe Duty
  • Double Row Bearings On Drive End
  • 100,000 Hour Bearings

2. Motor Junction Box
  • Completely Potted With Epoxy filler

3. Motor Shaft
  • 17-4 PH Stainless Steel Heat Treated
  • One Piece Design From Upper Bearings To Propeller
  • 135,000 PSI Minimum Yield Strength
  • Threaded And Keyed Shaft

4. Labyrinth Seal Guard
  • Positioned Below The Lower Motor Bearing To Prevent Moisture From Getting Into The Bottom Bearing
5. Discharge Cone:
  • 304 SS Or Cast Steel, Epoxy Coated
  • Monolithic Casting
  • Large Integral Webs Provide Rigid Stability And Increase Strength
  • Maximum Diffusion Of Water Particles
  • Minimum Head Loss
  • Low Vibration Levels
  • Flange To Flange Connection To volute Distributes Dynamic Load And Reduces Stress

6. Float
  • Largest One-Piece Float Design
  • 14-Guage, 304L SS_Filled With Closed-Cell Polyurethane Foam For Stability -OR-
  • Fiberglass Reinforced Polyester (FRP)
  • Also Available In 316 SS

7. Deflector Bearing
  • Provides Support Only Under Load
  • Shaft Runs Free During Normal Conditions

8. Debris Deflector
  • Prevents Water And Debris Migrating Up The Shaft
  • Attached With 3 Stainless Steel Set Screws

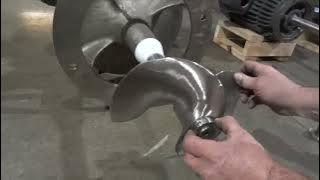

9. Propeller & Key
  • Precision Casting
  • Dynamically Balanced
  • 316 Or 15-5 Stainless Steel
  • Anti-Fouling, Non Cavitating For Greater Efficiency
  • Keyed To Mate With Motor Shaft
  • Secured To Shaft With 304L SS Locking Nut
  • Simple Installation And Replacement

10. Locking Nut
  • Firmly Locks The Propeller To The Shaft
  • Stainless Steel
  • Easy Installation And Replacements

11. Volute
  • 304L Stainless Steel
  • Gussets At Top & Bottom Flanges To Provide Strength
  • Bottom Flange Designed For Simple Mating With Intake Cone, Anti-Erosion Cone Or Draft Tube

12. Intake Cone
  • Hydraulically Designed For Proper Loading On Propeller
  • 304L Stainless Steel
  • Strength To Support Assembled Unit On Hard, Flat Surface
  • Optional Anti-Erosion
  • Optional Draft Tube

Please contact us for any of your parts or service needs.
Phone: 815.623.5111
